E-Lightning

Introducing the faster, longer range, more comfortable e-bike.

UPC: 731628318054

The low Lightning position gives a 30% speed and range increase over upright e-bikes.

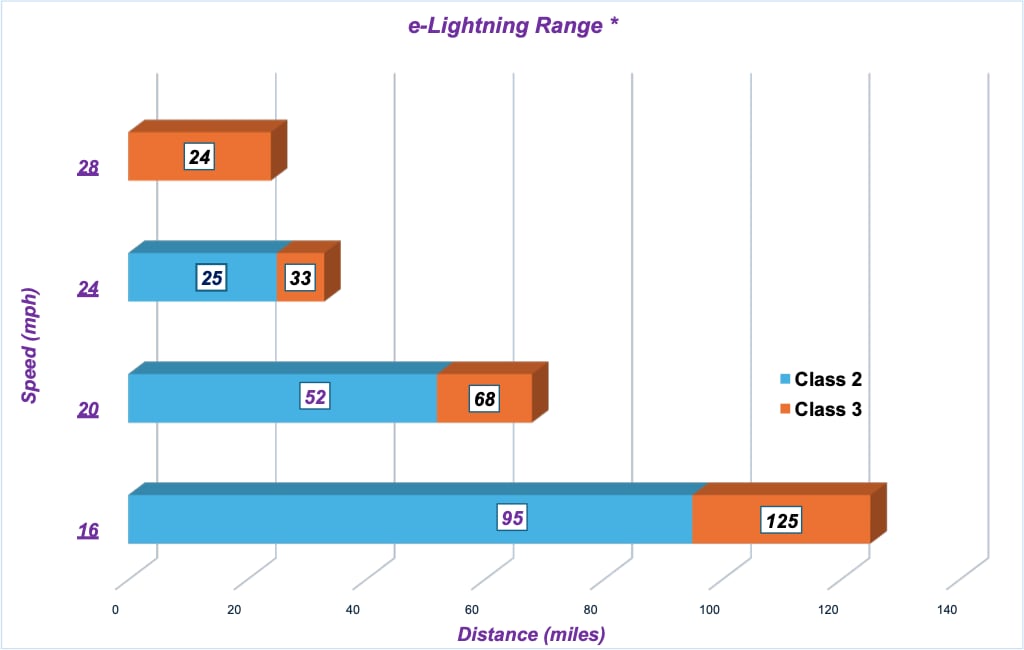

  • Range: 12 to 35 miles, depending on speed, hills, and pedal assist.
  • Top speed: Up to 35 mph where allowed by law.
  • Pedal-Assist & Throttle On Demand.
  • Programmable LCD dashboard.

“Got my first ride today on the Lightning Phantom with electrical assist. This combination leveled the hills and allowed me to laugh at the headwinds. Now I ride between 10 and 15 mph rather than 6 to 8 mph. I use the throttle to get going from a stopped position. Covered 16 miles on my first electrical-assisted trip. It’s almost like I grew a pair of bionic legs.”

William Lamica
e-lightning-logo

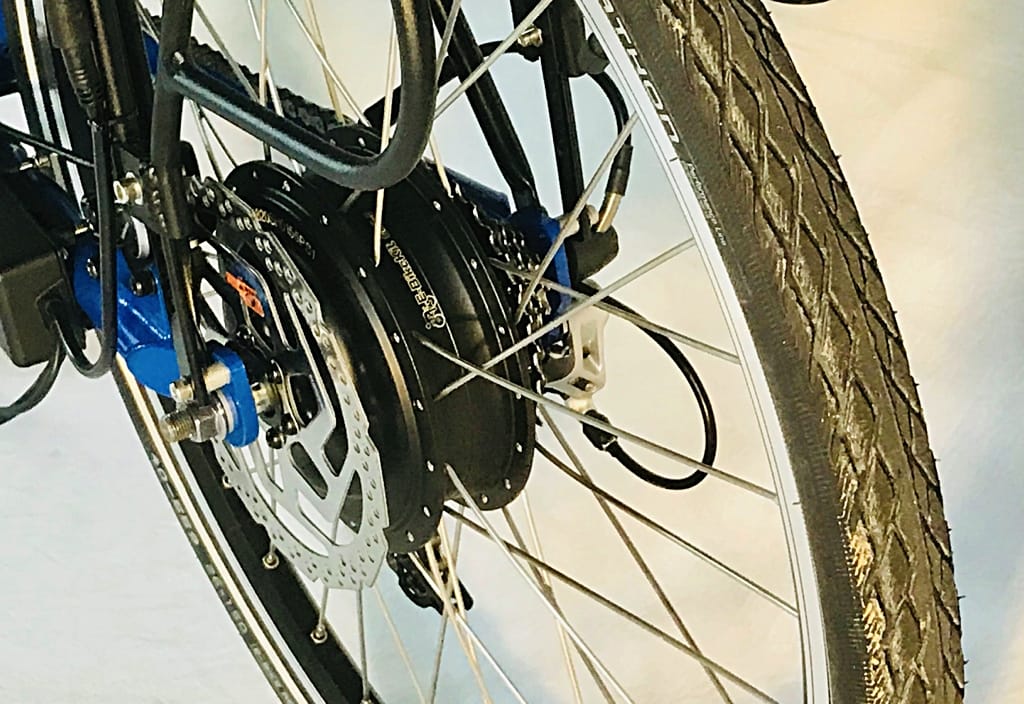

e-lightning-close-up
A 500-watt motor is powered by an internal 5:1 planetary gear hub motor with clutch.

The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with “start/stop” riding), has more starting torque, and has greater hill-climbing ability than a Direct-Drive motor of equal power rating. The motor is also smaller in diameter and 3.4 pounds lighter than the 500-watt direct-drive.

Brand Electric Bike Technologies
Type Internally geared (brushless, disc brake compatible)
Power 500 watt nominal
Max Torque 84N-m @48v
Max RPM 320 @48v
Cable 8-inch axle exit, 3-phase / 5 Hall effect
Connector Round 8-pin 13/32-inches (10.4 mm)
Weight 9.4 pounds (4.26 kg)
Warranty 1 year (300-pound max load)

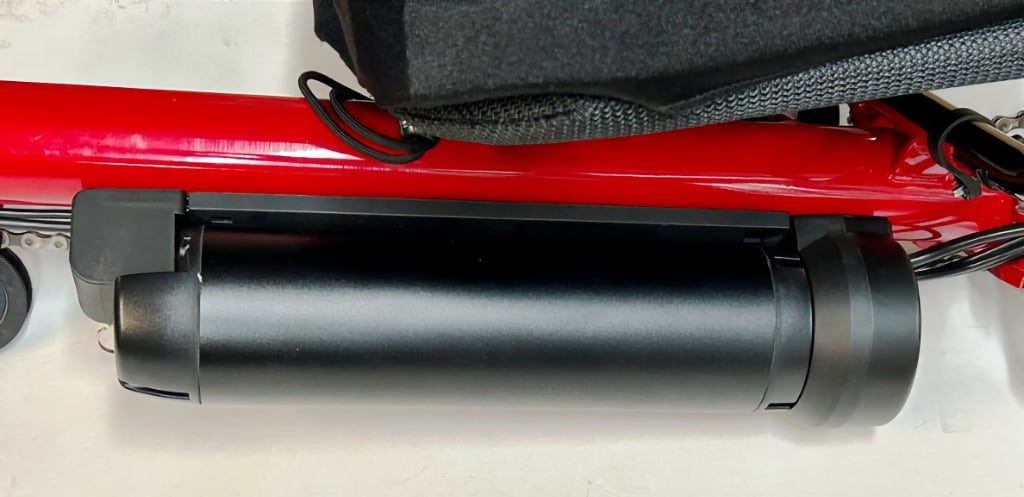

e-lightning-battery-rack
48 Volt 10 amp-hour Li-ion battery pack.
  • Battery is in an aluminum case and can be removed for charging.
  • Key lock prevents theft and unauthorized use.
  • Rear rack is included with bike.
  • Li-ion batteries provide a high level of performance for the duration of each discharge. Li-ion batteries have a much higher power to weight ratio than lead-acid and 5-8 times the number of charge cycles (how many times a rechargeable battery can be charged from 0-100%). The Li-ion option costs more initially, but over time, the “cost-per-cycle” is about half the cost of lead-acid. Li-ion packs also require less care as they can be left partially charged, and do not require immediate charging after each use. All batteries must be properly cared for during storage.
Charging Time 10 amp hour pack = 4hrs
Nominal voltage 48 volts
Nominal Capacity 10 amp hour (0.2C)
Battery Energy 360 watt hour (Approx.)
Dimensions 11.7 inches (297 mm) × 6 inches (148 mm) × 2.7 inches (68 mm) (Approx.)
Total Weight 7.7 pounds / 3.5 kg
Cell Assembly 18650-3.6v-10S5P
Life Cycles 800-1,000 cycles
Max. Continuous Discharge 22.5 amps
BMS Protection Current 30A / 30A / 60A
Discharge Cut-Off voltage 39 volts
Max. Charge voltage 54.6 volts
Inner Resistance ≤ 130 mΩ
Operation Temperature Range Charge: 0°C to 45°C / Discharge: -20°C to 60°C
Storage Temperature 0°C to 40°C (Extended Storage: 15°C to 25°C)
Battery Case Material Aluminum
Assembled Pack Certificates UL; UN38.3; MSDS; RoHS; SGS
Limited Warranty 1 year
Manufacturer Electric Bike Technologies
e-lightning-dashboard

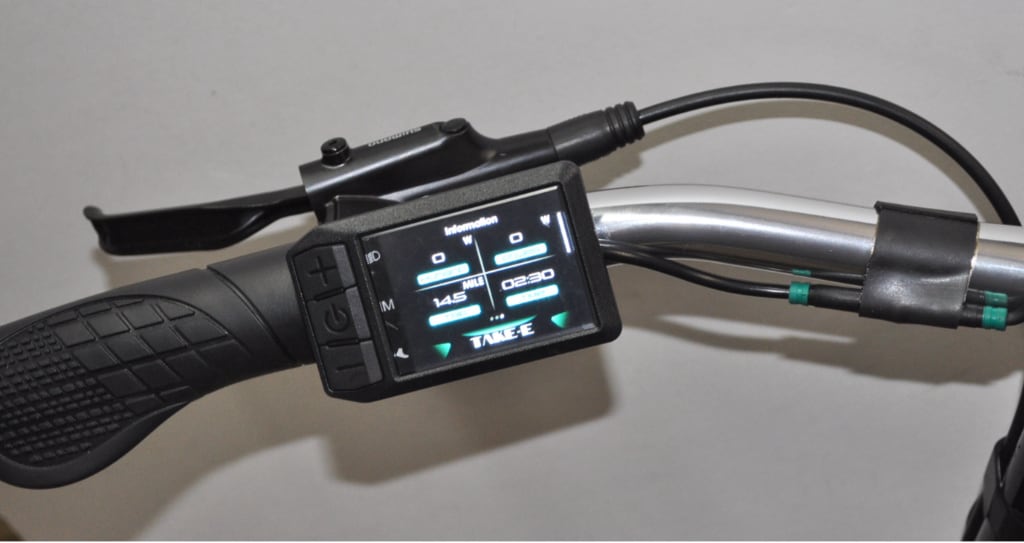

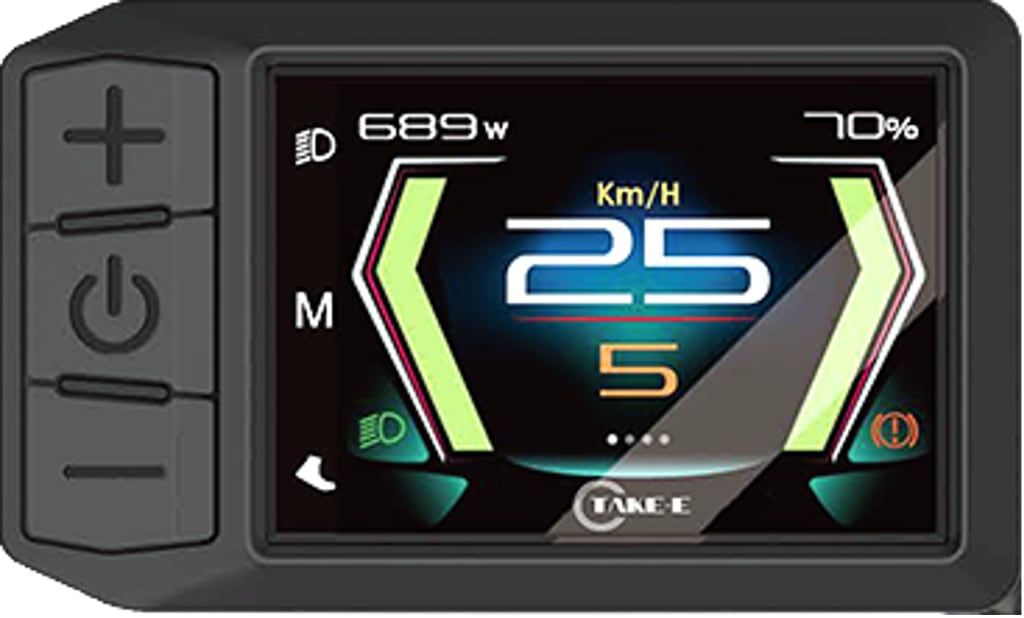

Programmable LCD Dashboard
  • Proprietary Software
  • Displays Speed, Trip Distance, ODO
  • Battery indicator and Assist Setting
  • Programmable with Speed-Limiting Option
  • Customizable PAS Sensitivity Settings
e-lightning-power-assist-ring
Power assist sensor ring.

In power-assist mode the motor only operates when you pedal. There are four different levels of motor assist, controlled by a selector switch.

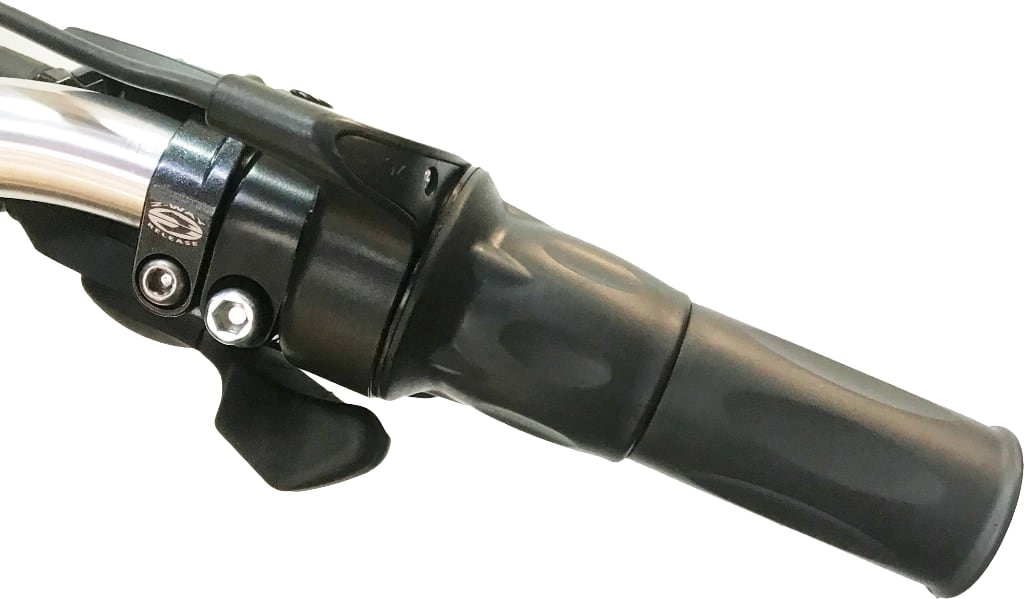

e-lightning-throttle
Twist throttle.

On-demand throttle allows using the motor from a dead start. No need to be moving before the motor will engage, unlike other systems.

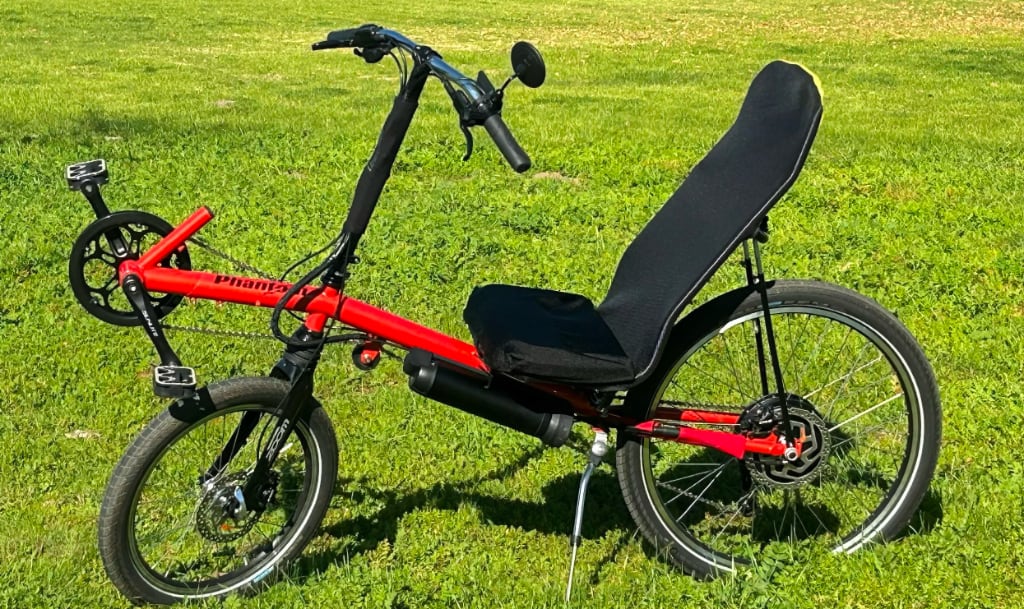

e-lightning-side
