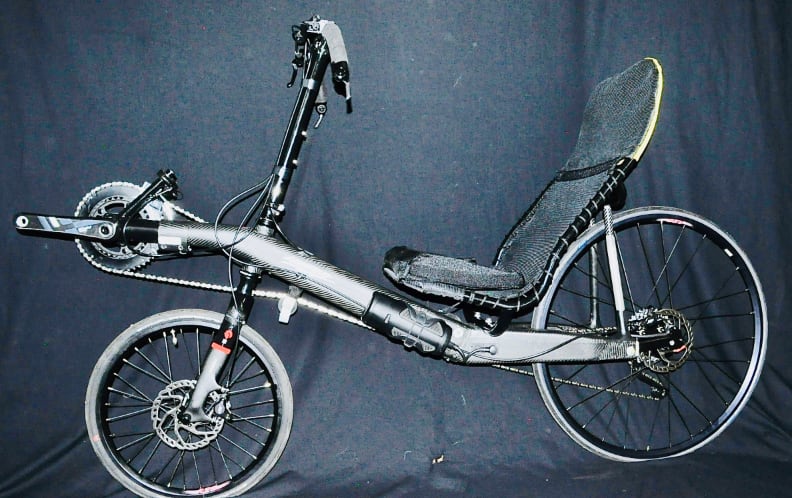

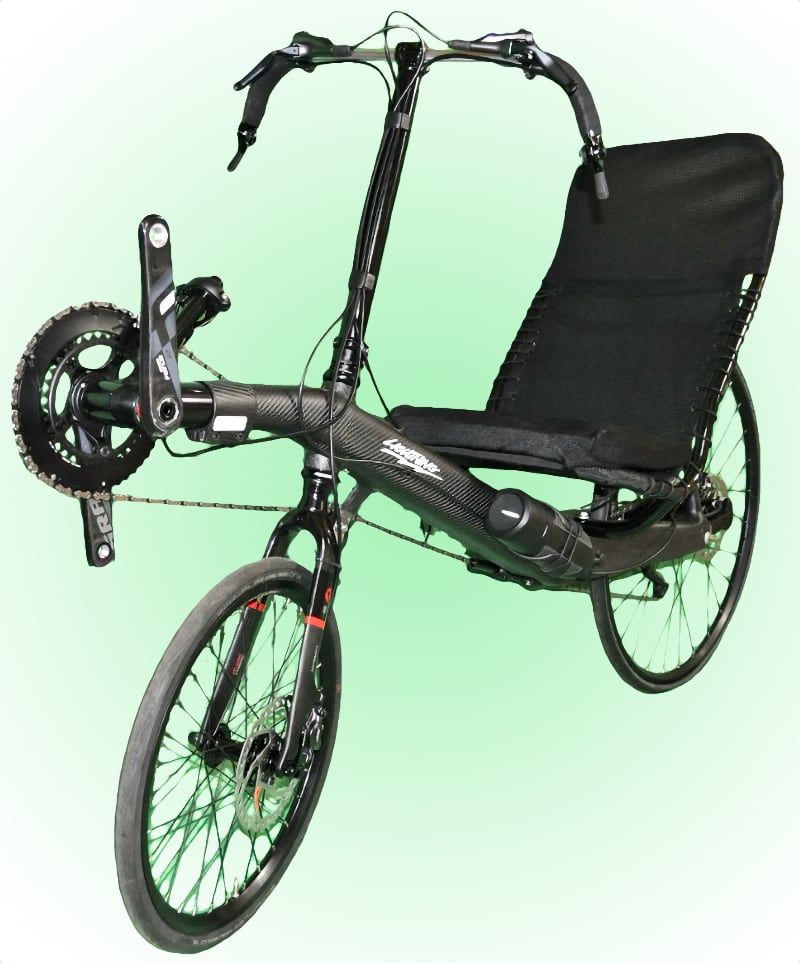

The Lightning E-84

Faster, longer range, safer, more comfortable e-bike

The low Lightning seat position gives a 30% speed and range increase over upright e-bikes.

Carbon fiber frame for super light e-bike.

Top assist speed: 20 mph

Climbing up to 18% grade

Total weight only 30 lbs.

Mahle Smartbike X20 system

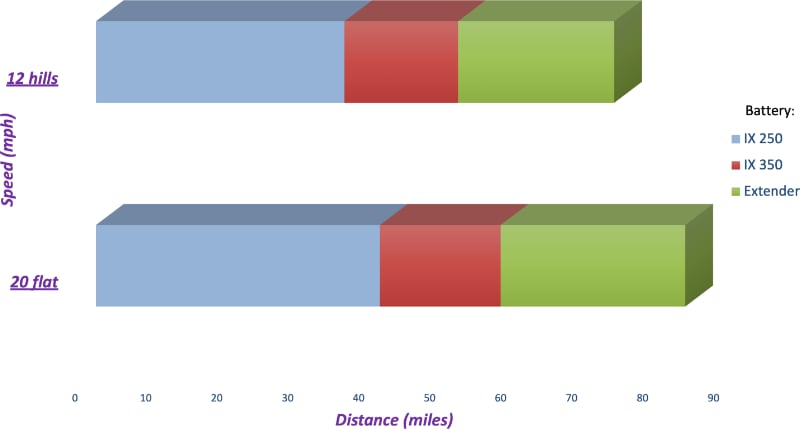

Lightning E-84 range — E-84 Lightning range with minimal stops, 175 pound rider.

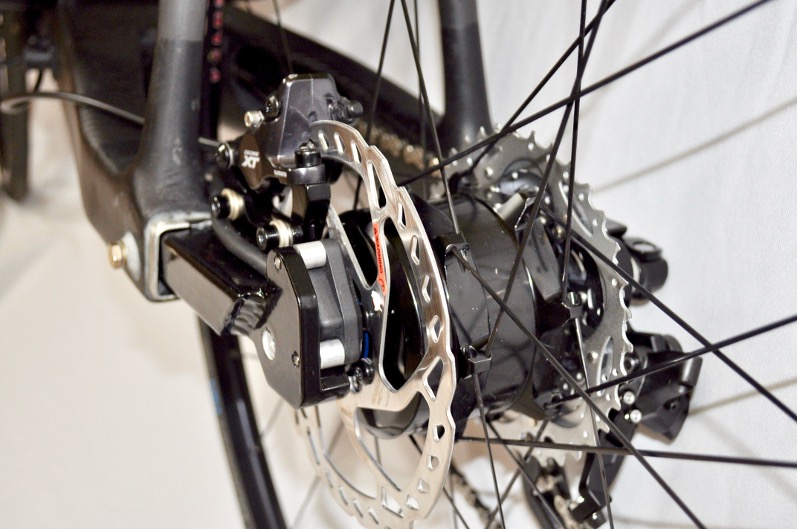

Lightning E-84 motor — 250 Watt motor with internal planetary gearing and clutch.

The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with start/stop riding), has more starting torque, and has greater hill-climbing ability than a Direct-Drive motor of equal power rating.

Brand: Mahle (Click here to see more information about the Mahle system.)
Type: Internally Geared (brushless, disc brake compatible)
Power: 250W nominal
Max Torque: 55N-m @36V
Sensor: Dropout mounted hub rotation PAS sensor

Lightning E-84 battery — Battery installed inside molded carbon unibox frame. Either IX 250 or IX 350 battery can be installed.

Lightning E-84 controls — IWOC control head adjust assist level. Four assist levels, 25% to 100%. Also indicated system status and battery charge level.

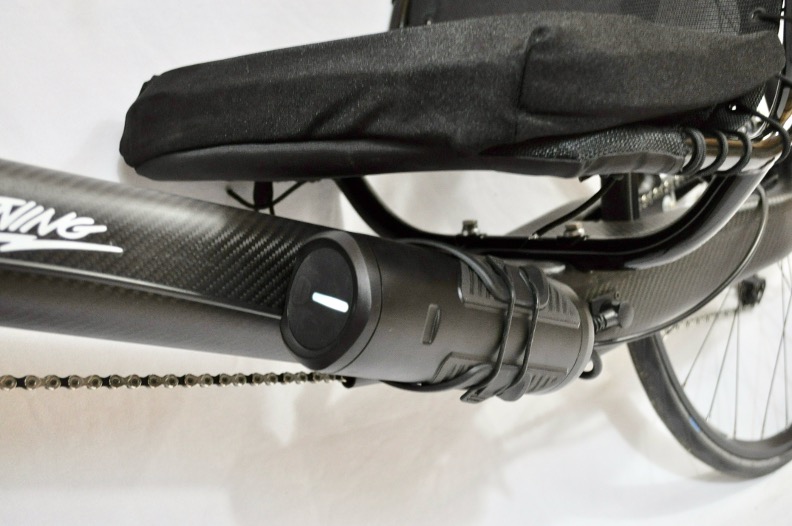

Lightning E-84 range extender — The optional range extender battery adds an additional 171 W-hrs of power.

See the standard Lightning R-84 midracer here.
